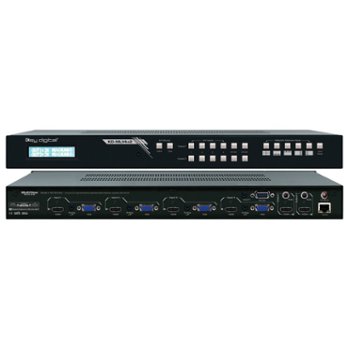

Key Digital - MultiView Series Seamless Matrix Switcher - Black

SKU:4289505 Model:KD-MLV4X2
Easily switch between sources with this Key Digital MultiView Series KD-MLV4X2 matrix switcher, which lets you connect 4 HDMI/analog sources to 2 HDMI outputs. Support for up to 1920 x 1200 input resolution and 4K UHD upscaling ensures a crisp picture.


4 inputs and 2 outputs
Let you connect up to 4 HDMI/analog sources to 2 HDMI outputs (independent in full-screen and quadrant modes). Fully licensed and compatible with HDMI and HDCP technologies.
Seamless switching
Allows uninterrupted screen transitions when you select a source in full-screen mode or multiview modes. Multiview window processing enables you to create and store custom layouts and recall custom presets.
Supports up to 1920 x 1200 resolution
Backward compatible with SD, HD and VESA input resolutions up to 1080p on HDMI and analog video inputs. 4K UHD upscaling allows the outputs to independently upgrade to UHD in 4K quadrant mode.
Audio de-embedding
Allows you to de-embed audio from the selected input through the coaxial digital (PCM) output in addition to the HDMI output.
Image layering
Stacks images according to your customizable priority settings.


Key Specs
CompatibilityHDMI and HDCP technologies
Model NumberKD-MLV4X2
Color CategoryBlack
Manufacturer's Warranty - LaborNone
Manufacturer's Warranty - PartsLifetime limited
Height1.75 inches
Width17.25 inches
Depth8.88 inches
Output(s)HDMI, RCA
Input(s)3.5mm audio, Analog audio, HDMI
Built-in ScalerYes
Maximum Supported Resolution1920 x 1200
Selector Switch Box TypeOther
Number Of Inputs4
Number of Outputs2
